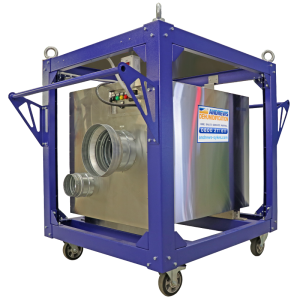

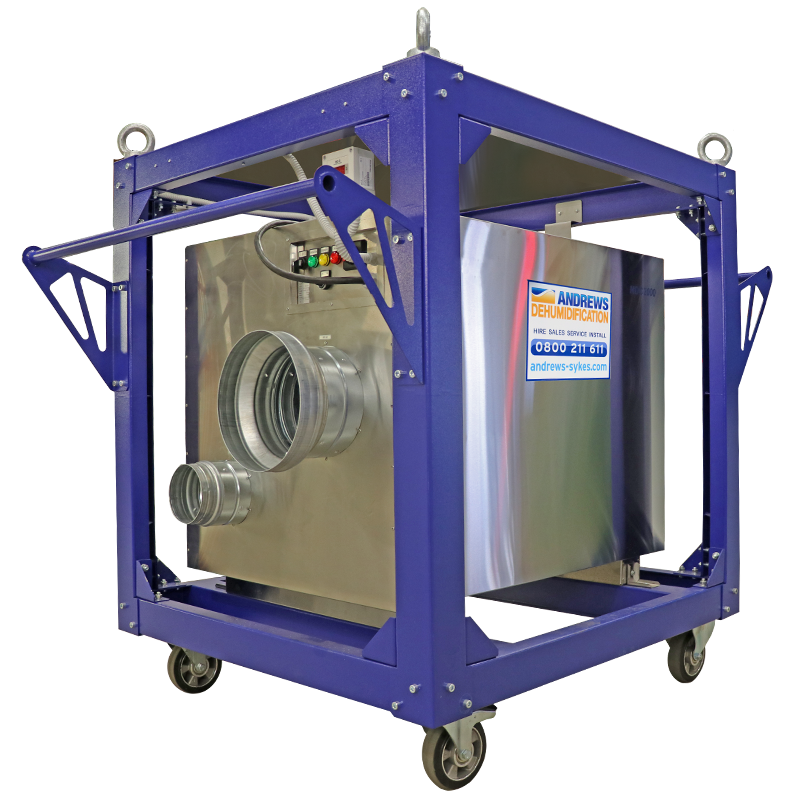

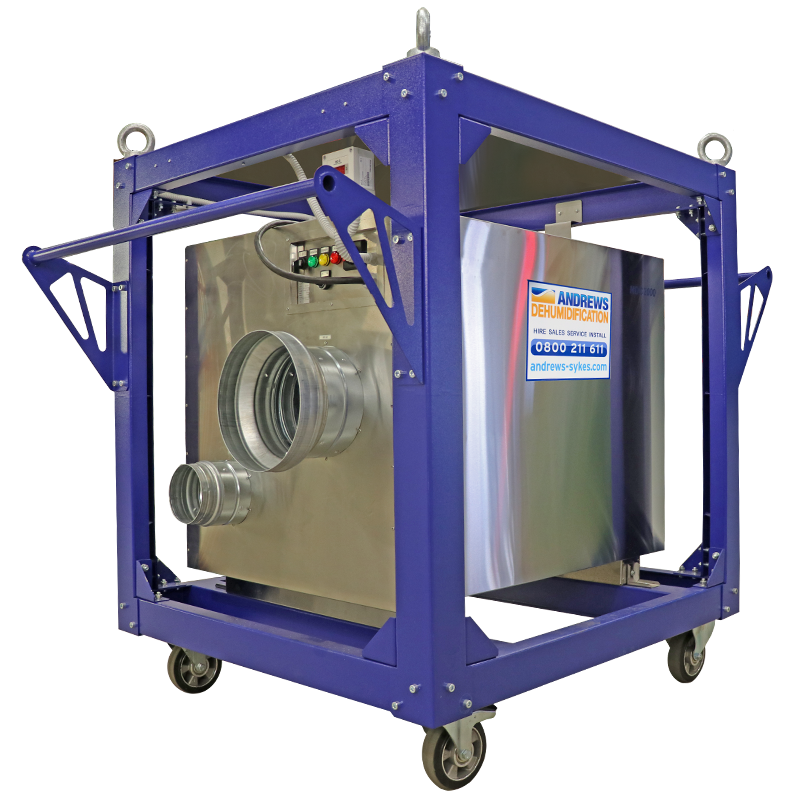

KT2200 Desiccant Dehumidifier
The K2200 is a cost-effective desiccant dehumidifier designed for applications where low relative humidity is required and where work is being carried out at very low temperatures. With an average power consumption of just 10kW/h, this model is significantly more economical than similar units available elsewhere. Considered a more efficient option than refrigerant dehumidifiers when temperatures are 10°C or below, the K2200 can keep dry areas of up to 7,000m³ or dry out areas of up to 3,500m³. Like all desiccant dryers, this product draws air across a rotating wheel containing a silica gel to remove moisture from the atmosphere. This particular unit is commonly deployed in challenging or hazardous applications, including fuel storage tanks, marine sites and ship holds.
Click image to Zoom
Features
- Extraction rates of up to 480 litres every 24 hours – ideal for large areas
- Quiet operation – can be left running without disrupting others
- Fully automatic – can run unattended
- Compatible with ducting – for projects with site restrictions
- Large airflows – perfect for high capacity drying
- Reduced power consumption – affordable running costs
- Simple installation – enabling immediate use
- Robust construction – can be used in challenging environments
Environments
- Building drying
- Industrial processes
- Electrical switch rooms
- Tank drying
- Pharmaceutical
- Agriculture
- Marine
- Petrochemical
- Warehouses
- Product Storage
- Corrosion prevention
- Construction sites
Accessories
- 0M EXT LEAD BS4343 5 PIN 32 AMP 415V 6MM DIA
- 20M EXT LEAD BS4343 5 PIN 32 AMP 415V 6MM DIA
- REMOTE HUMIDISTAT
- FLEXIBLE DUCT (WET AIR) 200MM
- FLEXIBLE DUCT (DRY AIR) 300MM
- FLEXIBLE DUCT (PROCESS AIR) 300MM
Specifications
- Extraction rate (max)
- 480 litres/24hr
- Nominal extraction duty at 60% RH @ 20⁰C
- 310 litres/24hr
- Air flow (max)
- 2,200 m³/h
- Keep dry area (typica)
- 7,000 m³
- Dry out area (typical)
- 3,500 m³
- Power supply
- 415V 3 ph N+E 50 Hz Run 24A
- Plug type
- BS4343 5 pin 32 A
- Generator size
- 22 kVA
- Duct length (max)
- 40 metres
- Noise level (max)
- 70 dBA / 79lWA @ 1 metre
- Weight
- 315 kg
- Dimensions (L x W x H)
- 1,326 x 1,210 x 1,510 mm
- Control
- Manual or Auto (humidistat mounted)
- Power consumption
- 10 kW/h
- Duct diameters
- Process in 300mm, Dry out 300mm, Wet out 150mm, Refrigeration air in 150mm
