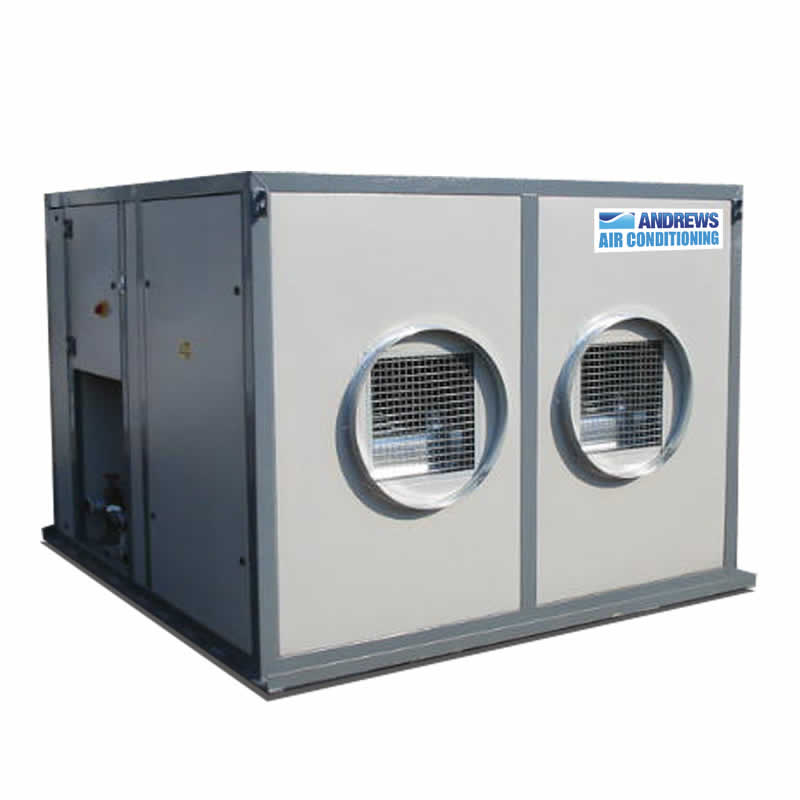

150/300kW Boiler Air Handler
150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
Click image to Zoom
Features
- Safe and easy to use
- Economical
- Fully portable
- Very reliable
- Robust construction
- Quiet operation
- Fully automatic operation
Environments
- Food preparation areas
- Shops
- Cold storage facilities
- Marquees
- Offices
- Events and Exhibitions
- Computer rooms
- Archives
- Temporary accommodation
Specifications
- Power supply
- 415 V 3 ph 50 Hz N+E Run 20 A/hr
- Noise level (max)
- 84 dBA @ 1 metre
- Weight
- 934 kg
- Dimension
- 2,260 x 1,980 x 1,700 mm
- Plug type
- BS4343 5 Pin 32 A
- Duct length (max)
- 50 metres
- Duct size
- 2 x 600 mm
- Nominal cooling capacity
- 150 kW 511,800 btu
- Nominal heating capacity
- 300 kW 1,023,600 btu
