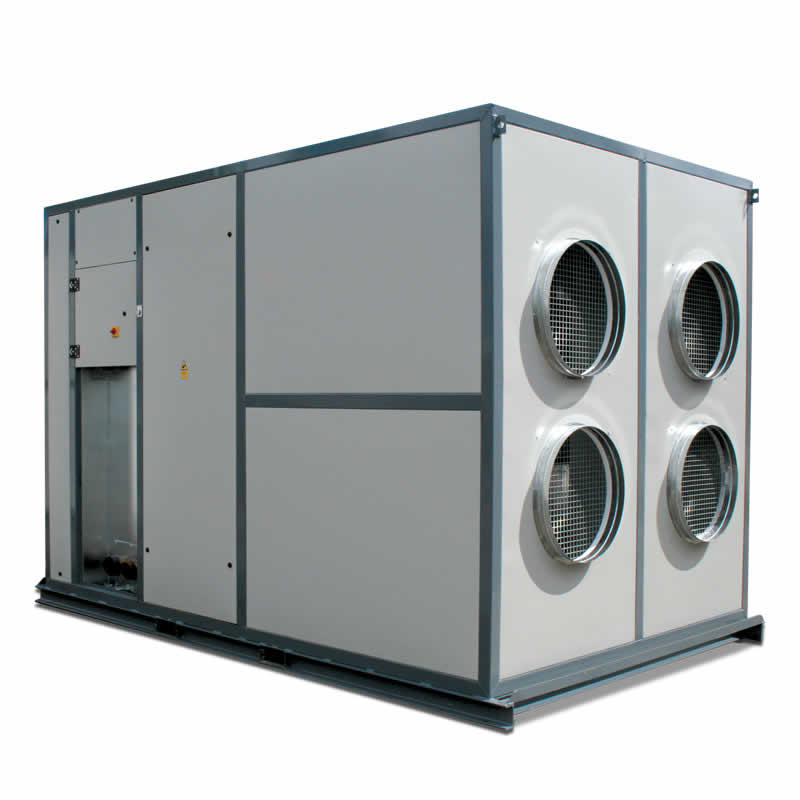

300/600kW Boiler Air Handler
300 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with an internal condensate pump. A full range of ancillaries are available, including insulated flexible duct, plenum chambers, extraction fans and condensate hose.
Click image to Zoom
Features
- Safe and easy to use
- Economical
- Fully portable
- Very reliable
- Robust construction
- Quiet operation
- Fully automatic operation
Environments
- Food preparation areas
- Shops
- Cold storage facilities
- Marquees
- Offices
- Events and Exhibitions
- Computer rooms
- Archives
- Temporary accommodation
Specifications
- Power supply
- 415 V 3 ph 50 Hz N+E Run 30 A/hr
- Noise level (max)
- 81 dBA @ 5 metres
- Weight
- 2,150 kg
- Dimension
- 3,780 x 2,340 x 2,590 mm
- Plug type
- BS4343 5 Pin 32 A
- Duct length (max)
- 50 metres
- Duct size
- 4 x 600 mm
- Nominal cooling capacity
- 300 kW 1,023,600 btu
- Nominal heating capacity
- 600 kW 2.047,200 btu
- Integral thermostat
- No
- Integral condensate pump
- Yes
- Fan speed controller
- No
