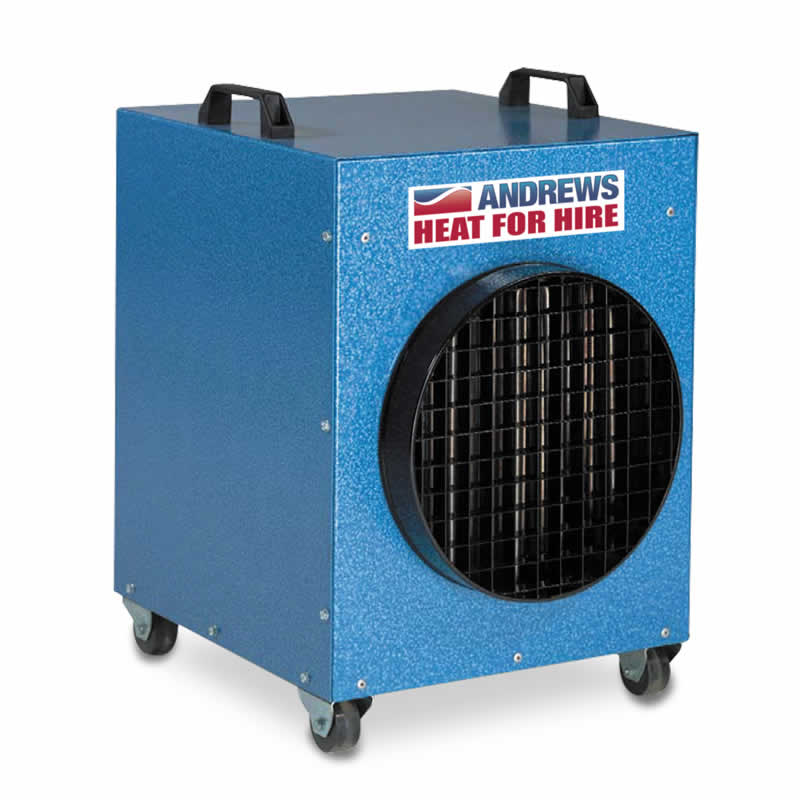

DE 95 electric heater
The DE 95 is a very efficient electric fan heater and is available as a 415 volt 3phase version only. The unit has three settings, 10kw, 15kw or 20kw and can either be hard wired or supplied with a short cable tail and suitable plug. For automatic operation, the DE 95 can be used in conjunction with the T32 control thermostat.
Click image to Zoom
Features
- Safe and easy to use
- Quiet in operation
- Can reach and heat awkward places
- Economical
- Fully portable
- Very robust
- Fully automatic operation option
- Delivers huge volumes of warm air
Environments
- Offices
- Building sites
- Shops and Showrooms
- Marquees and tents
- Hotels
- Storerooms
- Garages
- Workshops
- Industrial units
- Ships
- Classrooms
- Switching stations
- Clinics
- Temporary accommodation
Specifications
- Heating duty (max)
- 20 kW 68,240 btu
- Typical heated area
- 484 m
- Generator size
- 25 kVA
- Power supply
- 415 V 3 ph 50 Hz Run 28 A (max)
- Plug type
- BS4343 32 A 3 ph 4 pin
- Noise level (max)
- 61 dBA @ 1 metre
- Weight
- 32 kg
- Dimension
- 470 x 410 x 580 mm
- Power consumption (max)
- 20 kW/hr
- Control
- Manual (in line auto stat/contactor available)
