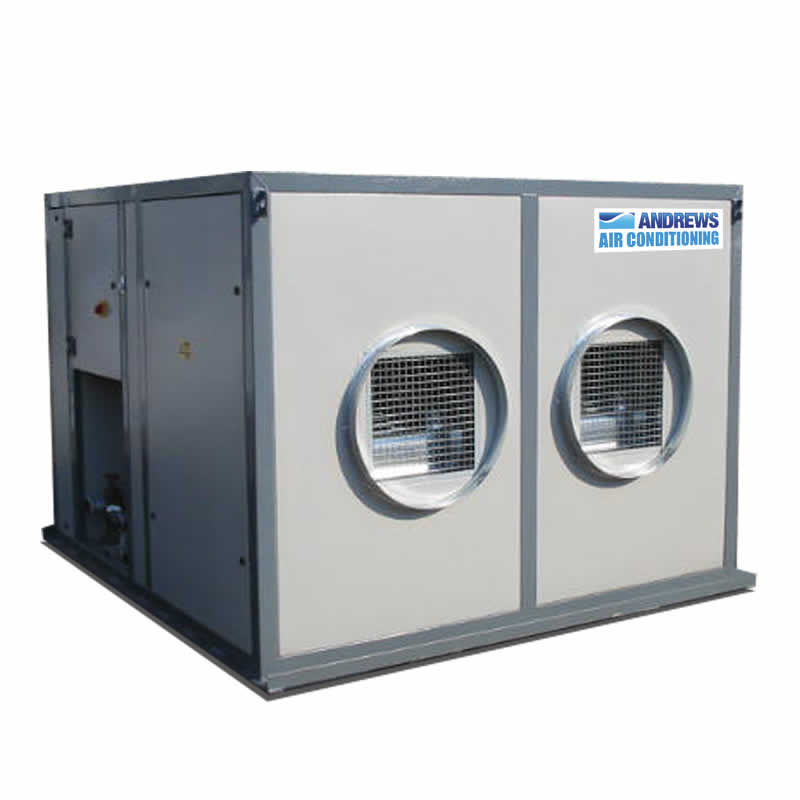

150 kW Air Handling unit - Fan Coil
150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units have internal condensate pumps.
- Full Details
- Features / Environments
- Specifications
150 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
For large spaces and process cooling
The 150kW Air Handling unit cool/heat an area of 3,624 m3 - 127,950 ft3
150 kW Air Handling unit dimensions: 1,980 x 2,260 x 1,700 mm and weighs 934kg
Features
|
|
Environments
|
|
- Nominal cooling capacity
- 150 kW 511,800 btu
- Noise level (max)
- 84 dBA @ 1 metre
- Nominal heating capacity
- 300 kW 1,023,600 btu
- Dimension
- 2,260 x 1,980 x 1,700 mm
- Plug type
- BS4343 5 Pin 32 A
- Duct length (max)
- 50 metres
- Power supply
- 415 V 3 ph 50 Hz N+E Run 20 A/hr
- Duct size
- 2 x 600 mm
- Weight
- 934 kg
