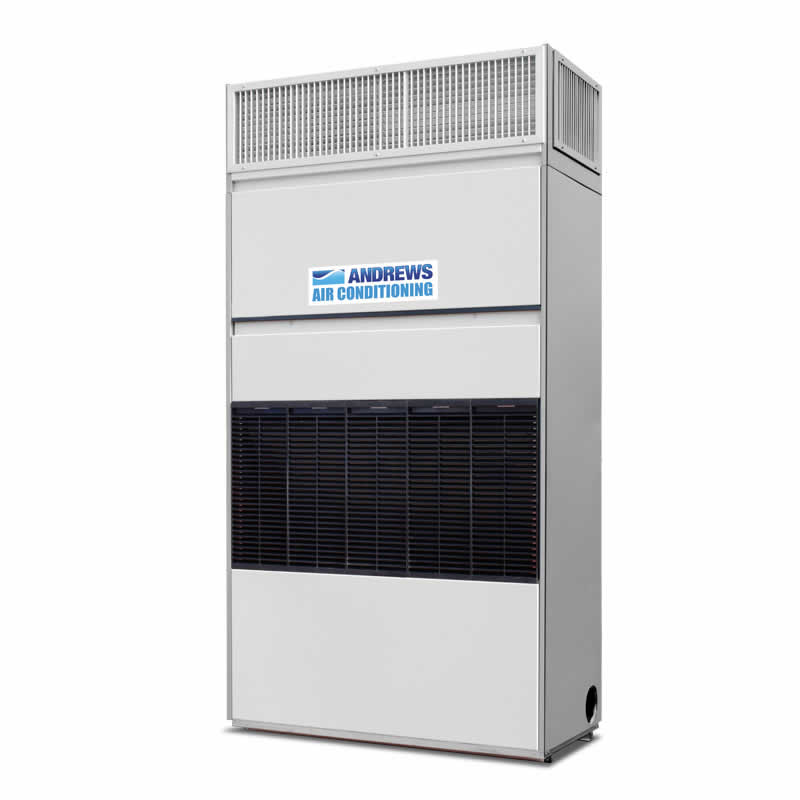

30 kW Fan Coil
30 kW Fan Coil unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
- Full Details
- Features / Environments
- Specifications
30 kW Fan Coil unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
For large spaces and process cooling
The 30kW Fan Coil will cool/heat an area of 1,049 m3 - 22,178 ft3
The 30kW Fan Coil dimensions are 500 x 1,050 x 1,700 mm + 360 mm (with diffuser) and weighs 140kg
Features
|
|
Environments
|
|
- Nominal heating duty (HP version)
- 60 kW 204,720 btu
- Noise level (max)
- 58.5 dBA @ 1 metre
- Power supply
- 230 V 1 ph 50 Hz Run 4 A
- Weight
- 140 kg
- Plug type
- BS1363 13 A
- Dimension
- 1,050 x 500 x 2,060 mm (with top box)
