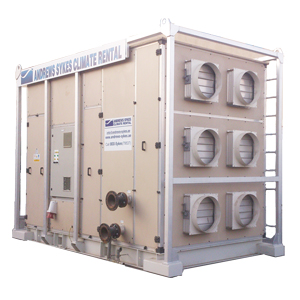

660 kW Air Handling unit
The 660kW Air Handling units offered by Andrews Sykes Climate Rental can connect with our existing chilled water circuit or to an Andrews packaged water chiller, heat pump or boiler. These units have internal thermostat with a nominal cooling capacity of 660kW.

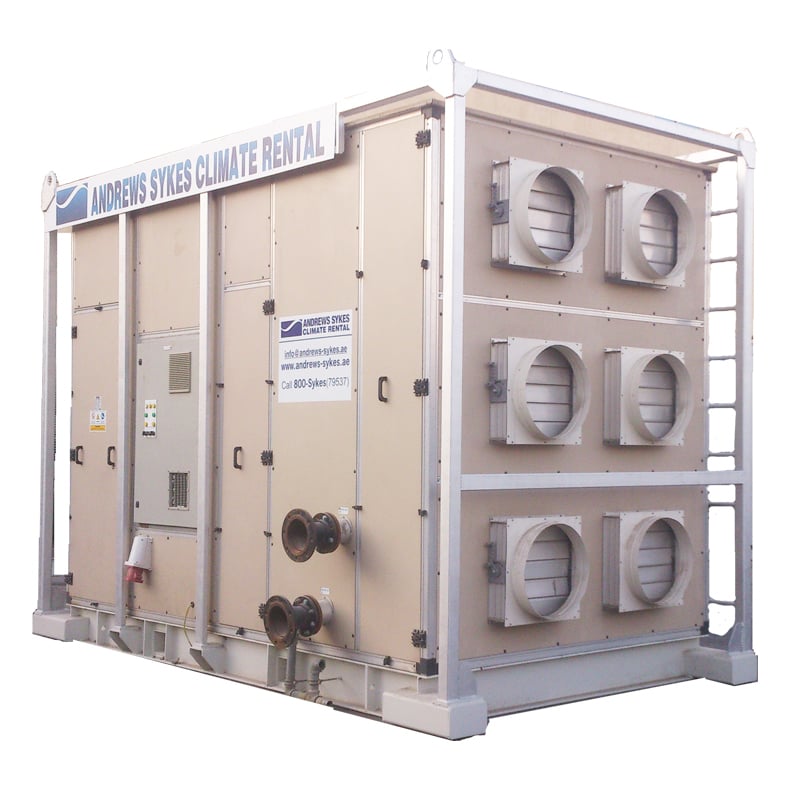

Click image to Zoom
Features
- Fully Portable Unit
- Strong & Robust
- Very economical
- Easy to Use
- Safe and Automatic Operation
- Reliable and Quiet Operation
Environments
- Events & Exhibition Halls
- Retail & Shops
- Cold Storage Areas
- Marquee Tents
- Small & Large Offices
- IT & Computer Rooms
Specifications
- Noise level (max)
- 79 dBA @ 5m
- Power supply
- 415V 3ph 50Hz N+E Run 65A/h
- Weight
- 3280kgs
- Plug type
- 125A
- Dimension
- 4m x 2.3m x 2.9m
- Duct length (max)
- 100m
- Duct size
- 6 x 500mm
- Nominal cooling capacity
- 660kW 2,251,920BTU
- Integral condensate pump
- No
- Integral thermostat
- Yes
- Air flow (max)
- 40,680m3/h
- Fan speed controller
- Yes
