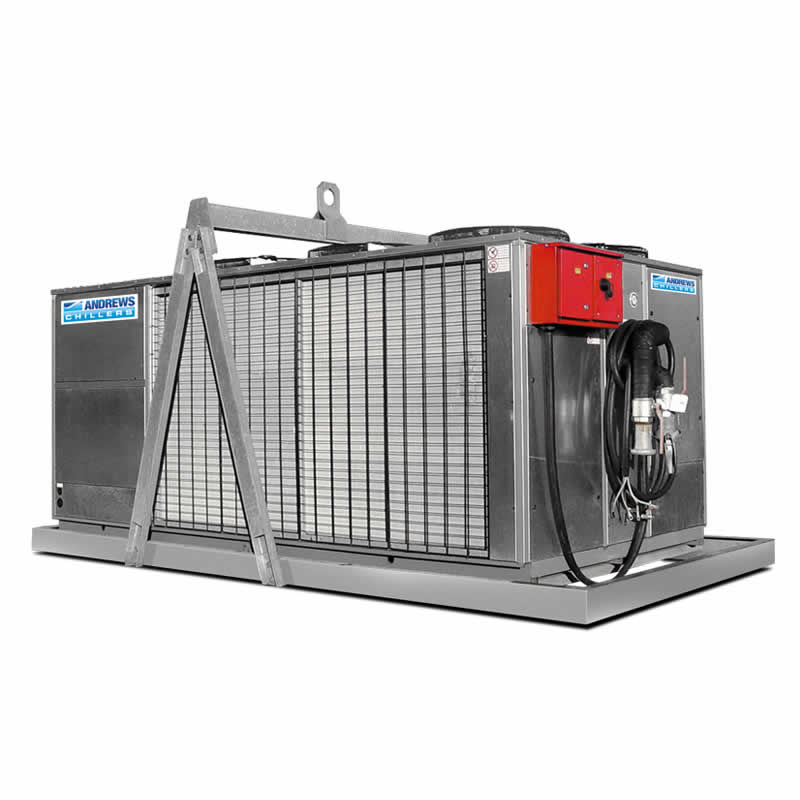

200kW Fluid Chiller
The 200kW fluid chiller is a robust powerful and easley portable fluid chiller. This highly efficient chiller and can be used for a multitude of applications in all industry sectors. Its quiet in operation and environmentally friendly - as are all Andrews Chillers. Also available with heat pump option, for all year round use. The 200kW chiller is compatible with all Andrews air handling units and fan coils.
Click image to Zoom
Features
- Connects to existing pipe work easily
- Quiet operation
- For cooling large areas
- Quick release pipe adaptors
- Economical
- Easy installation
- Environmentally friendly
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
Specifications
- Dimension
- 4,550 x 2,300 x 2,900 mm
- Weight
- 3,500 kg
- Noise level (max)
- 53.3 dBA @ 10 metres
- Plug type
- Hard wired
- Average power consumption
- 63.2 kW/hr
- Generator size
- 140 kVA
- Water connection
- 3 Bauer
- Power supply
- 415 V 3 ph +E 50hz Run 120 A/hr
- Nominal heating duty (HP version)
- 200 kW 682,400 btu
- Nominal cooling duty
- 200 kW 682,400 btu
- Control
- Automatic programmer
