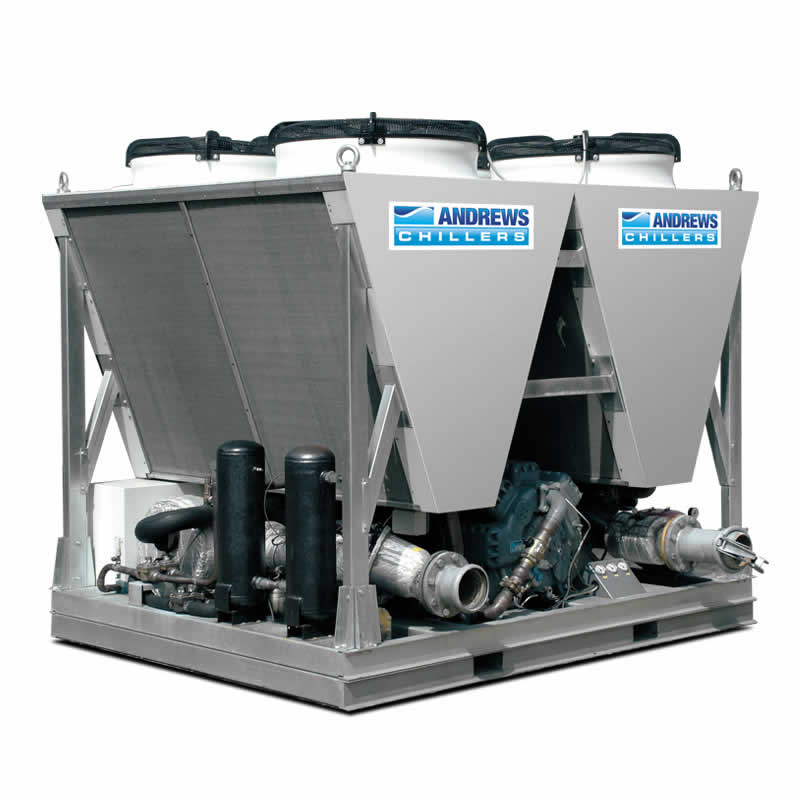

550kW Fluid Chiller
The 550kW fluid chiller is highly efficient, and exceptionally strong these chillers and can be used for a multitude of applications where large volumes of cooling is needed. There is a heat pump version available. It's quiet in operation and environmentally friendly - as are all Andrews Chillers. The 550kW chiller is compatible with all Andrews air handling units and accessories.
Click image to Zoom
Features
- For cooling large areas
- Quiet operation
- Quick release pipe adaptors
- Economical
- Easy installation
- Environmentally friendly
- Connects to existing pipe work easily
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
Specifications
- Generator size
- 450 kva Dependent on system resistance
- Water connection
- 6 Bauer
- Average power consumption
- 160 kW/h
- Dimension
- 2900 x 2300 x 2700 mm
- Weight
- 4,100 kg
- Noise level (max)
- 82 dBA @ 10 metres
- Plug type
- Hard wired
- Nominal heating duty (HP version)
- 550 kW 1,876,600 btu
- Power supply
- 415 V 3 ph +E 50 hz Run 320 Amps
- Nominal cooling duty
- 550 kW 1,876,600 btu
- Control
- Automatic programmer
