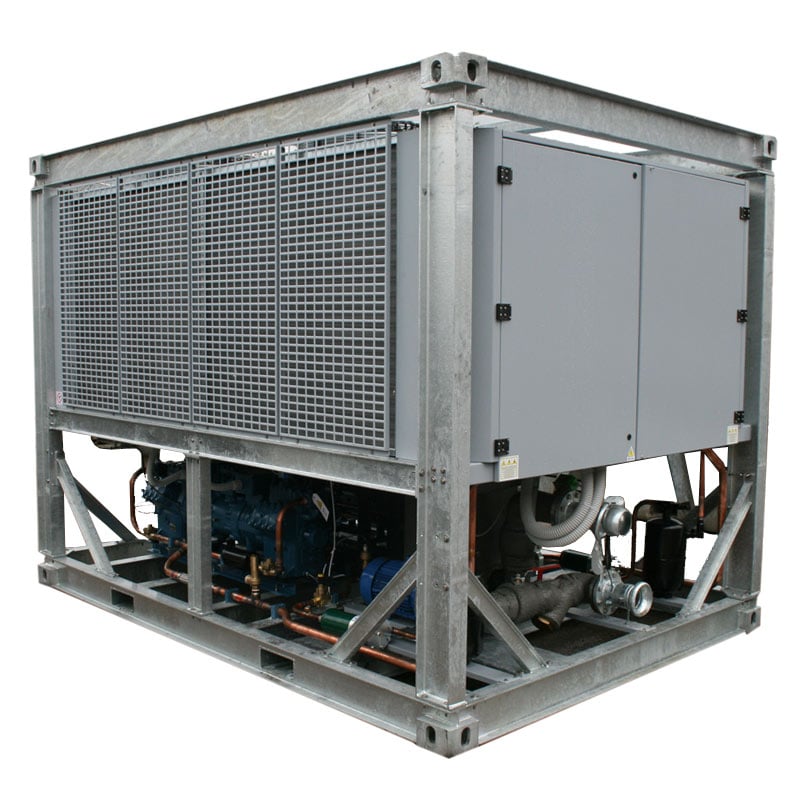

500kW Fluid Chiller
The 500 kW fluid chiller is a highly efficient, and exceptionally strong chiller and can be used for a multitude of applications where large volumes of cooling is needed. It's quiet in operation and environmentally friendly, as are all Andrews chillers. The 500 kW chiller is compatible with all Andrews air handling units and accessories.
Click image to Zoom
Features
- For cooling large areas
- Quiet operation
- Quick release pipe adaptors
- Economical
- Easy installation
- Environmentally friendly
- Connects to existing pipe work easily
Environments
- Air conditioning
- Product storage
- Process cooling
- Low temperature applications
- Temperature control
- Disaster recovery
- Scheduled chiller maintenance
- Events and corporate hospitality
Specifications
- Dimension
- 3,491 x 2,438 x 2,590 mm
- Average power consumption
- 160 kW/hr
- Generator size
- 400 kVA dependent on system resistance
- Noise level (max)
- 82 dBA @ 10 metres
- Weight
- 4,200 kg
- Plug type
- Hard wired
- Power supply
- 415 V 3 ph +E 50 Hz Run 320 A/hr
- Nominal cooling duty
- 500 kW 1,876,600 btu
