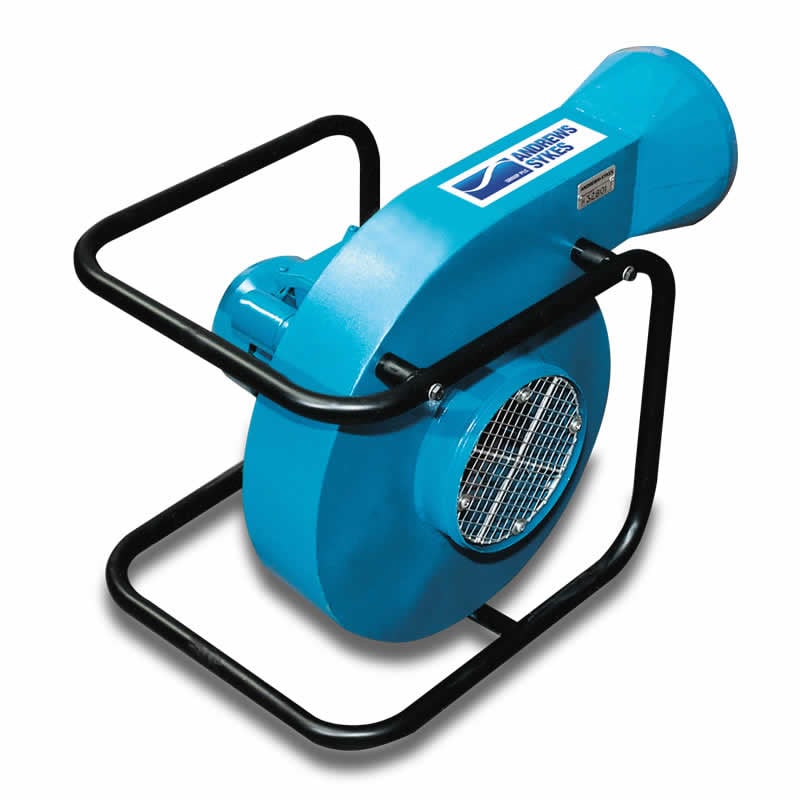

FV100 DV ventilation extraction fan
The FV100 DV Ventilation/extraction fan is a robust high powered fan, used with ducting for the removal of dangerous fumes, dust particles and vapours. The FV100 DV has a maximum ducted length of 10mtr and can be linked to Heaters, Boilers and Chillers to distribute warm or cool air over large areas. The FV100 runs on 110 or 240v power supply.
- Full Details
- Features / Environments
- Specifications
The FV100 DV Ventilation/extraction fan is a robust high powered fan, used with ducting for the removal of dangerous fumes, dust particles and vapours. The FV100 DV has a maximum ducted length of 10mtr and can be linked to Heaters, Boilers and Chillers to distribute warm or cool air over large areas. The FV100 runs on 110 or 240v power supply.
For large spaces
For supplying fresh air into confined spaces.
The FV100 DV has a maximum air flow of 1,700 m3/h
The FV100 DV dimensions are 440 x 605 x 535 mm
Features
|
|
Environments
|
|
- Average power consumption
- 1.15 kW/hr
- Generator size
- 5 kVA
- Dimension
- 605 x 440 x 535 mm
- Plug type
- BS1363 230 V BS4343 16 A 110 V
- Weight
- 27 kg
- Power supply
- 230/110 V 1 ph 50 Hz Run 5/10.5 A
- Noise level (max)
- 78.6 dBA @ 1 metre
- Control
- Manual
- Duct size
- 300 mm
