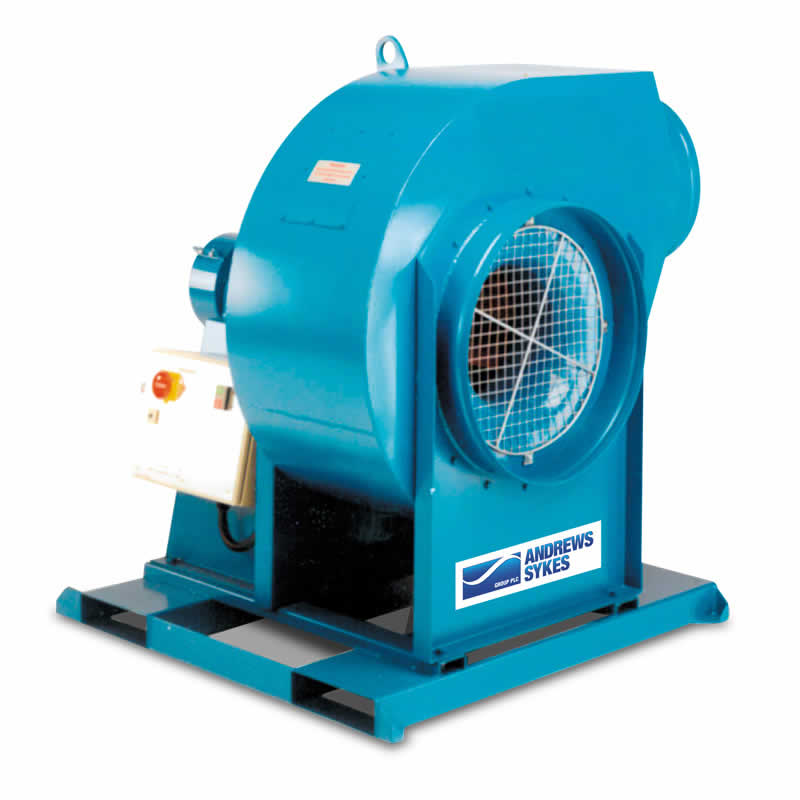

The FV600 Ventilation/extraction fan is a robust high powered fan, used with ducting for the removal of dangerous fumes, dust particles and vapours. The FV600 has a maximum-ducted length of 40mtr and can be linked to Heaters, Boilers and Chillers to distribute warm or cool air over large areas. This unit requires a 450v 3ph power supply.

For large spaces

For supplying fresh air into confined spaces.
The FV600 has a maximum air flow of 12,100 m3/h
The FV600 dimensions are 1,115 x 1115 x 1,350 mm

Features
  • Safe and easy to use
  • Robust construction
  • Easy installation
  • Quiet operation
  • Powerful air handling
  • Economical
  • Fully portable
  • Very reliable
Environments
  • Removal of welding fumes
  • Demolition
  • Tank cleaning
  • Agriculture
  • Sewer maintenance
  • Digging of polluted ground
  • Tunnel construction
  • Construction
  • Painting
Average power consumption
4.25 kW/hr
Generator size
20 kVA
Dimension
1,115 x 1,115 x 1,350 mm
Plug type
BS4343 5 pin 16 A 415 V
Weight
245 kg
Power supply
415 V 3 ph 50 Hz +E Run 6 A
Noise level (max)
83 dBA @ 1 metre
Control
Manual
Duct size
Inlet 600 mm Outlet 450
