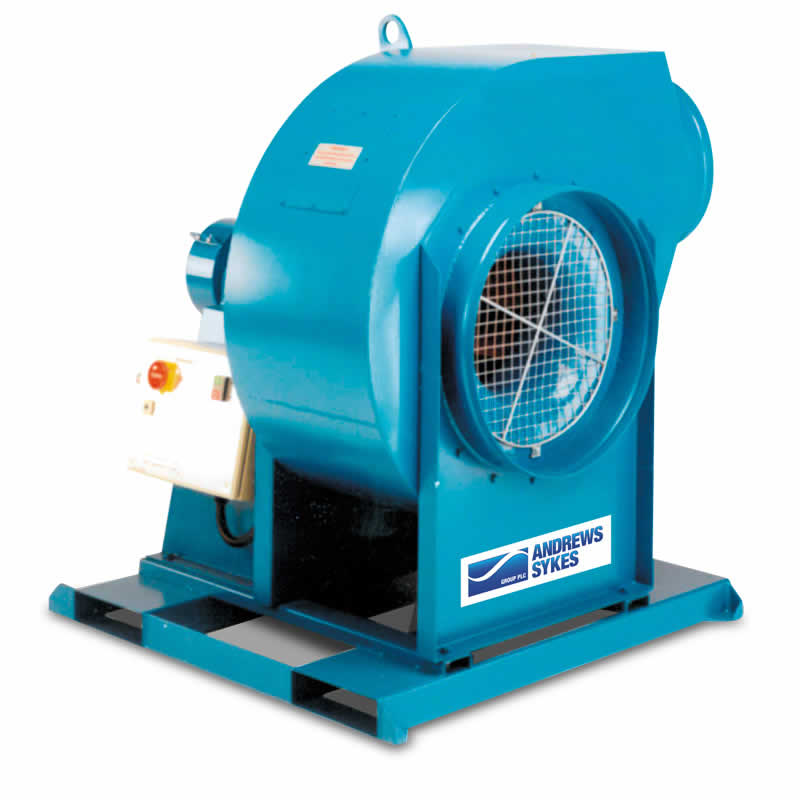

FV900 ventilation extraction fan
The FV900 Ventilation/extraction fan is a robust high powered fan, used with ducting for the removal of dangerous fumes, dust particles and vapours. The FV900 has a maximum-ducted length of 40mtr and can be linked to Heaters, Boilers and Chillers to distribute warm or cool air over large areas. This unit requires a 450v 3ph power supply.
Click image to Zoom
Features
- Safe and easy to use
- Robust construction
- Easy installation
- Quiet operation
- Powerful air handling
- Economical
- Fully portable
- Very reliable
Environments
- Removal of welding fumes
- Demolition
- Tank cleaning
- Agriculture
- Sewer maintenance
- Digging of polluted ground
- Tunnel construction
- Construction
- Painting
Specifications
- Power supply
- 415V 1 ph 50 Hz Run 10 A
- Plug type
- BS4343 3ph 5 pin 415V 16 A
- Generator size
- 35 kVA
- Duct size
- Inlet 600 mm Outlet 450mm
- Noise level (max)
- 86.6 dBA @ 1 metre
- Weight
- 295 kg
- Dimension
- 1,230 x 1,170 x 1,500 mm
- Average power consumption
- 7.1 kW/hr
- Control
- Manual
