FV300 ventilation extraction fan

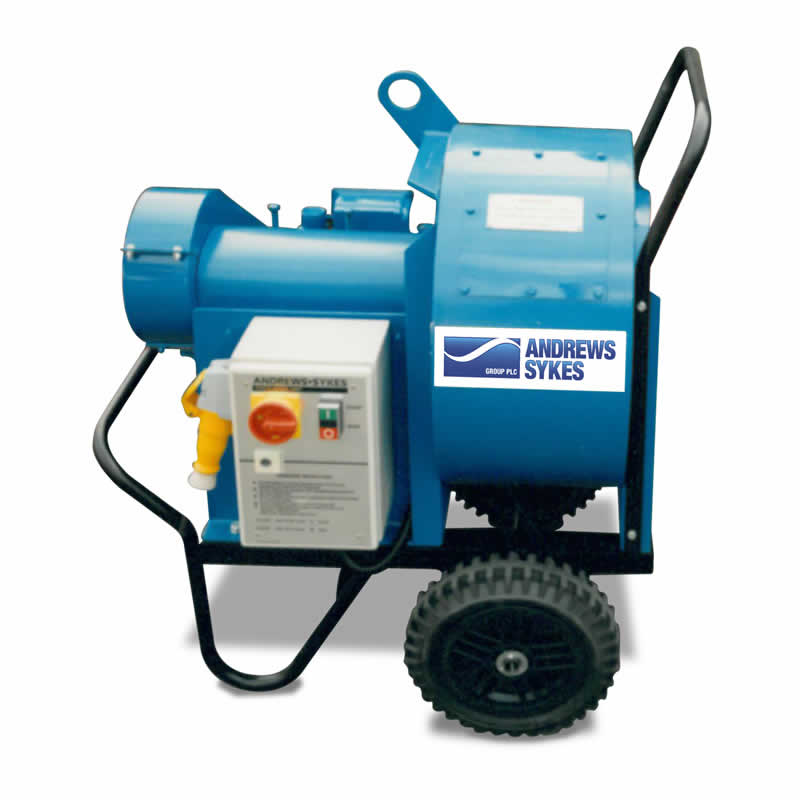

The FV300 Ventilation/extraction fan is a robust high powered fan, used with ducting for the removal of dangerous fumes, dust particles and vapours. The FV 300 has a maximum-ducted length of 40mtr and can be linked to Heaters, Boilers and Chillers to distribute warm or cool air over large areas. The FV300 runs on 110v or 240v power supply.
Click image to Zoom
Features
- Safe and easy to use
- Robust construction
- Easy installation
- Quiet operation
- Powerful air handling
- Economical
- Fully portable
- Very reliable
Environments
- Removal of welding fumes
- Demolition
- Tank cleaning
- Agriculture
- Sewer maintenance
- Digging of polluted ground
- Tunnel construction
- Construction
- Painting
Specifications
- Generator size
- 5 kVA
- Power supply
- 110 V 1 ph 50 Hz Run 17 A
- Plug type
- BS4343 32 A 110 V
- Transformer size
- 5 kVA (3.0 kW cont.)
- Duct size
- 300 mm
- Noise level (max)
- 86.9 dBA @ 1 metre
- Weight
- 130 kg
- Average power consumption
- 2 kW/hr
- Dimension
- 920 x 720 x 1,045 mm
- Control
- Manual
